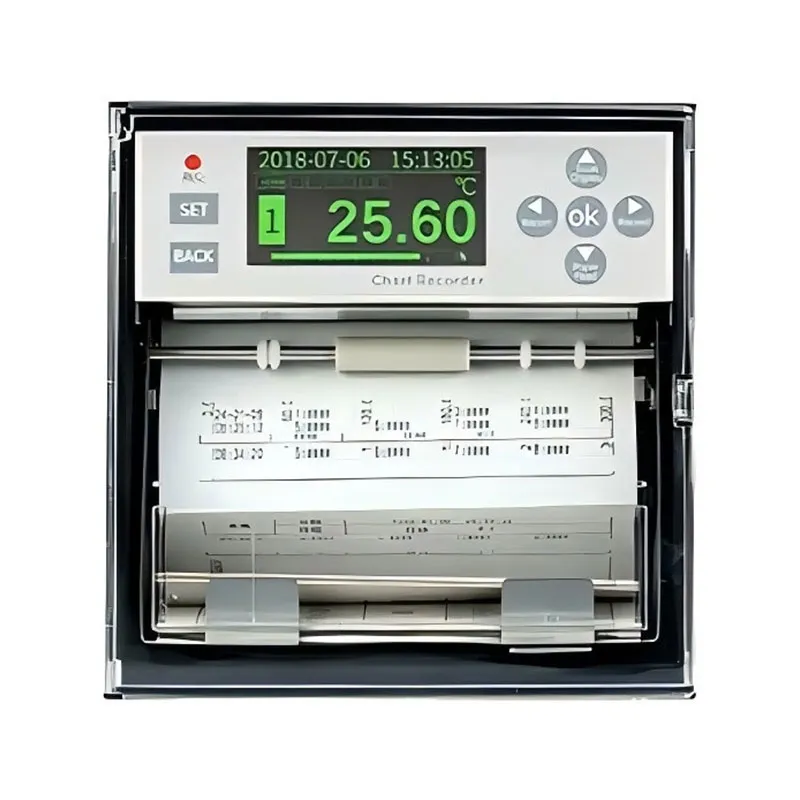

GT11R Chart Recorder

Name: GT11R Chart Recorder
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

GT11R industrial paper chart recorder supports 12 universal signal channels, with thermal printing for curves/data. Equipped OLED screen, 6 relay alarms, USB export and RS485 Modbus, widely used for temperature/pressure process recording.

Send Mail

Features of GT11R Chart Recorder

12-channel universal signal input, compatible with 4-20mA, voltage, Pt100 and all standard thermocouples
High-definition OLED real-time display, supports cyclic channel viewing and parameter preview
Three printing modes: curve / data / mixed; adjustable paper speed 10–450mm/h
Six independent relay alarm outputs for HH/H/LL/L limit abnormal signals
Built-in 24VDC power supply to power field transmitters directly
USB flash disk offline data storage, supporting history curve replay and export
Standard RS485 Modbus RTU communication for upper computer system linkage
6-channel 4-20mA retransmission output for secondary instrument matching
Multi-point linear correction and digital filtering to stabilize fluctuating measured signals
Standard 144×144 panel embedded installation, dual AC/DC power supply options

Specification of GT11R Chart Recorder

Input Channel	12 channels
Sampling Period	1 second
Recording Paper	Folded industrial thermal paper, 120mm wide, 8 meters long
Paper Feed Speed	10~450mm/h
Power Supply	100~240VAC 50~60Hz / 24VDC±10% 45W
Working Environment	-10~60℃ / 0~85%RH (non-condensing)
Warm-up Time	30 minutes after power-on
Installation	Indoor, panel mounting, rearward tilt<30 degrees from horizontal plane
Installation Panel Thickness	2~12mm
Instrument Weight	Approx. 3kg
Instrument Dimensions	144 (W) x 144 (H) x 233 (D)
Storage Environment	-20~80℃ / 0~85%RH (non-condensing)
Relay	Normally open, 250VAC 3A, 30VDC 3A (resistive load)
Power Distribution Output	24VDC±10% 60mA
Paper Feed Deviation	MAX 2mm
